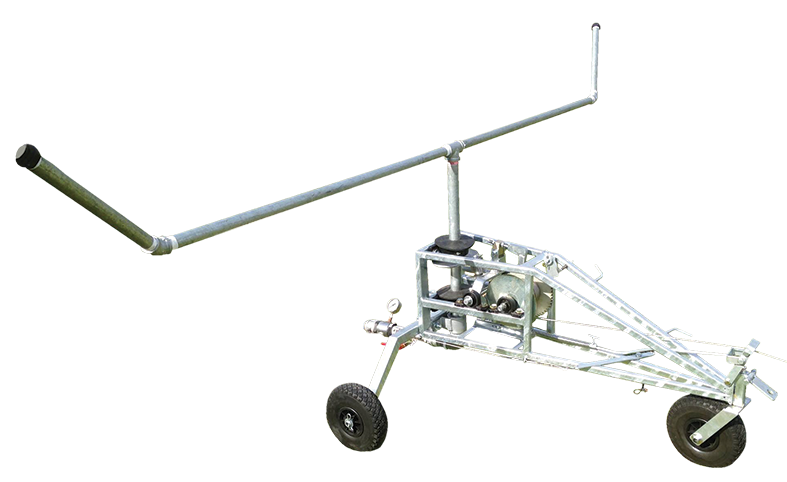

Vaughan Junior Irrigator 3.2m Boom, 100m x 3mm Cable
Vaughan Junior Irrigator 3.2m Boom, 100m x 3mm Cable
Regular price
$4,999.09 AUD
Regular price
Sale price
$4,999.09 AUD
Quantity
Couldn't load pickup availability
Description
Description
The Junior irrigator is the smallest irrigator in the Vaughan low pressure irrigator range. It is an ideal irrigator for small acreage, large lawns, horse arenas etc.
The Junior Irrigator operates in the same way as it bigger brother - the Standard. It is purely mechanical and has no gearbox, hydraulics or water winch so the majority of irrigator operating issues have been removed.
The Junior has been scaled down in size but not in performance! It has a 100m run and throws up to an impressive 24m. The Junior has 3 travel speeds and it will stop when it reaches the end of its pass.
This little irrigator is a real asset for any property
- Suitable for 1 to 5 acres
- Up to 7.2 lps
- Three wheel configuration
- 3.2m boom
- Low centre of gravity
- Up to 100 metre run
- Hot dip galvanised
- Four speed selections
- Australian designed & manufactured
- Automatic drive shut off available
Performance Indicators
| Nozzle | Flow lps | PSI | Wetted Width Metres |
Area Covered Hectares/100m Run |
Application Rate mm – 2 Hours |
Application Rate mm – 3 Hours |
Application Rate mm – 6 Hours |
|---|---|---|---|---|---|---|---|
| 5/16" | 1.2 | 10 | 16 | 0.18 | 4.8 | 7.2 | 14.4 |
| 1.4 | 15 | 19 | 0.23 | 4.7 | 7.1 | 14.1 | |
| 1.6 | 20 | 22 | 0.26 | 4.6 | 6.9 | 13.8 | |
| 1/2" | 2.8 | 10 | 17 | 0.19 | 10.4 | 15.6 | 31.2 |
| 3.6 | 15 | 20 | 0.23 | 10.6 | 15.9 | 31.8 | |
| 4.0 | 20 | 23 | 0.27 | 10.8 | 16.2 | 32.4 | |
| 5/8" | 5.6 | 15 | 18 | 0.21 | 19.6 | 29.4 | 58.8 |
| 6.4 | 20 | 21 | 0.25 | 19.1 | 28.7 | 57.3 | |
| 7.2 | 25 | 24 | 0.29 | 18.6 | 27.9 | 55.8 |
