SKU:730668

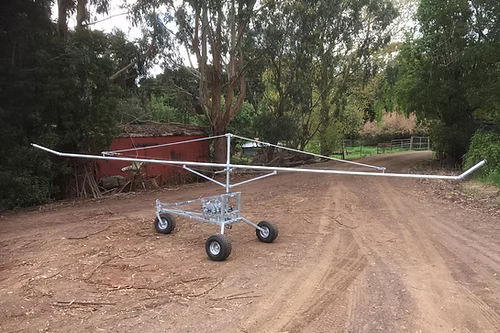

VCI Irrigator MK I, 10 metre Boom, 400m x 5mm Cable*
VCI Irrigator MK I, 10 metre Boom, 400m x 5mm Cable*
Regular price
$8,492.00 AUD
Regular price
Sale price
$8,492.00 AUD
Quantity
Couldn't load pickup availability
Description
Description
The Standard MkI irrigator has 300 metres of cable and 7-metre galvanised arms, designed for simple mechanical operation and easy speed adjustment across four settings. Its pivot points are housed in greased bearings, eliminating the need for a gearbox or water winch to reduce common issues. This irrigator is perfectly suited for low-pressure irrigating up to 20 acres of crops and pastures or for effluent distribution.
Features
- Suitable for 5 - 20 Acres
- 7 metre boom
- 300 metre cable run
- Throws up to 32 metres
- Heavy duty components
- Ideal for both effluent and water
- 10 – 90 psi
- Automatic shut off (Optional)
Performance Indicators
| Nozzle | Flow lps | PSI | Wetted Width Metres |
Area Covered Hectares/400m Run |
Application Rate mm – 4 Hours |
Application Rate mm – 6 Hours |
Application Rate mm – 12 Hours |
|---|---|---|---|---|---|---|---|
| 1/2" | 5.0 | 30 | 34 | 1.5 | 4.9 | 7.4 | 14.8 |
| 5.4 | 35 | 37 | 1.6 | 4.9 | 7.4 | 14.8 | |
| 5.8 | 40 | 40 | 1.7 | 4.9 | 7.4 | 14.8 | |
| 5/8" | 7.8 | 30 | 36 | 1.5 | 7.3 | 10.9 | 21.8 |
| 8.4 | 35 | 39 | 1.7 | 7.3 | 10.9 | 21.8 | |
| 9.0 | 40 | 42 | 1.8 | 7.3 | 10.9 | 21.8 | |
| 3/4" | 11.2 | 30 | 38 | 1.6 | 9.9 | 14.9 | 29.8 |
| 12.0 | 35 | 41 | 1.8 | 9.9 | 14.9 | 29.8 | |
| 13.0 | 40 | 44 | 2.0 | 9.9 | 14.9 | 29.8 |
