SKU:730659
Standard Irrigator MK I, 7 metre Boom, 300m x 4mm Cable*
Standard Irrigator MK I, 7 metre Boom, 300m x 4mm Cable*
Regular price
$6,495.00 AUD
Regular price
Sale price
$6,495.00 AUD
Quantity
Couldn't load pickup availability
Description
Description

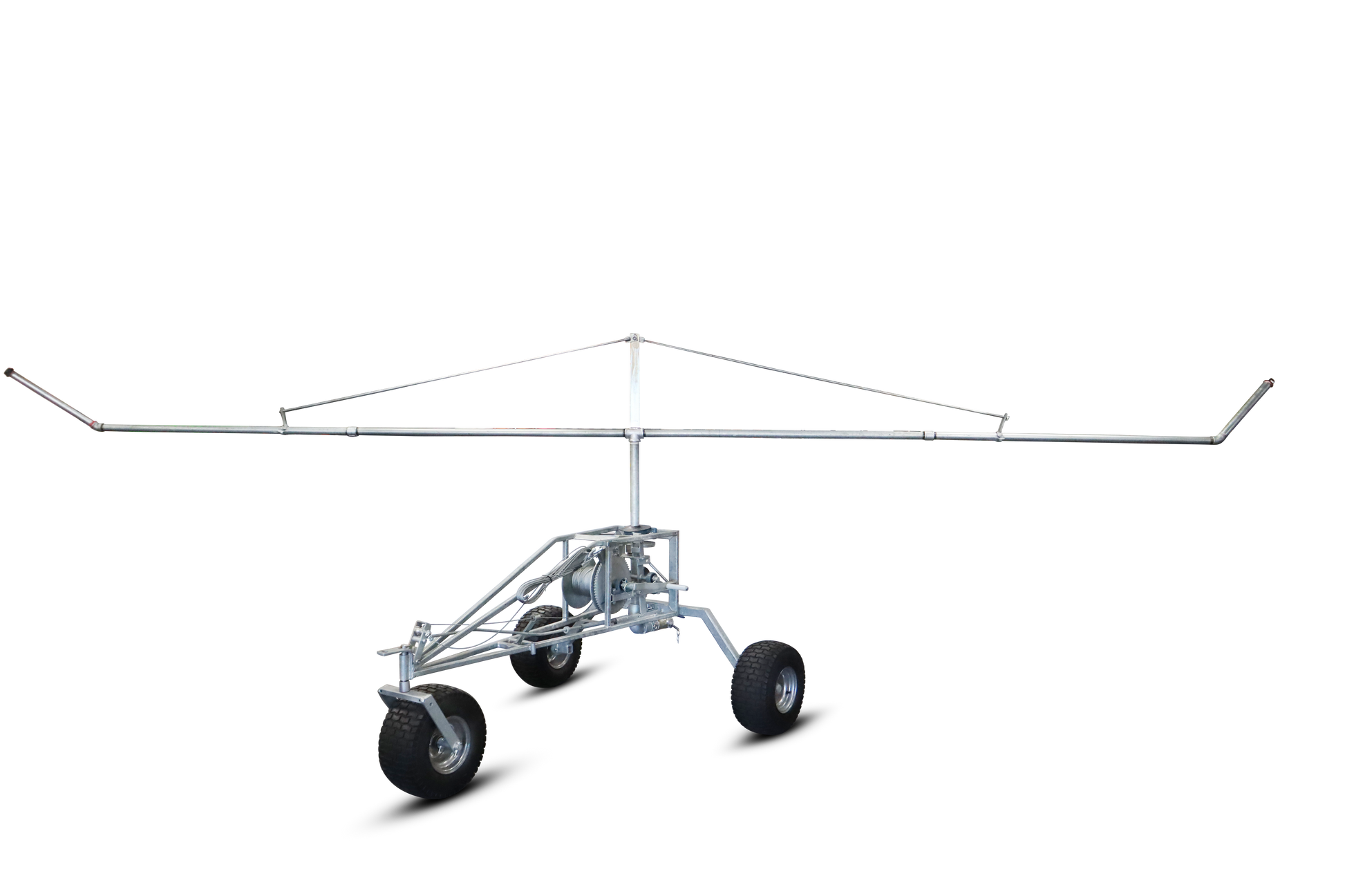

The Standard MkI irrigator has 300 metres of cable and 7-metre galvanised arms, designed for simple mechanical operation and easy speed adjustment across four settings. Its pivot points are housed in greased bearings, eliminating the need for a gearbox or water winch to reduce common issues. This irrigator is perfectly suited for low-pressure irrigating up to 20 acres of crops and pastures or for effluent distribution.
Features
- Suitable for 5 - 20 Acres
- 7 metre boom
- 300 metre cable run
- Throws up to 32 metres
- Heavy duty components
- Ideal for both effluent and water
- 10 – 90 psi
- Automatic shut off (Optional)
Performance Indicators
| Nozzle | Flow lps | PSI | Wetted Width Metres |
Area Covered Hectares/300m Run |
Application Rate mm – 4 Hours |
Application Rate mm – 6 Hours |
Application Rate mm – 12 Hours |
|---|---|---|---|---|---|---|---|
| 1/2" | 4.0 | 20 | 23 | 0.7 | 7.9 | 11.9 | 23.7 |
| 4.2 | 25 | 25 | 0.8 | 7.7 | 11.6 | 23.1 | |
| 4.8 | 30 | 29 | 0.9 | 7.4 | 11.1 | 22.2 | |
| 5/8" | 6.4 | 20 | 25 | 0.8 | 11.4 | 17.1 | 34.2 |
| 7.2 | 25 | 28 | 0.9 | 10.6 | 15.9 | 31.8 | |
| 7.8 | 30 | 32 | 1.0 | 9.8 | 14.7 | 29.4 | |
| 3/4" | 9.2 | 20 | 23 | 0.7 | 18.0 | 27.0 | 54.0 |
| 10.2 | 25 | 28 | 0.9 | 16.3 | 24.5 | 48.9 | |
| 11.2 | 30 | 32 | 1.1 | 15.5 | 23.3 | 46.5 |
